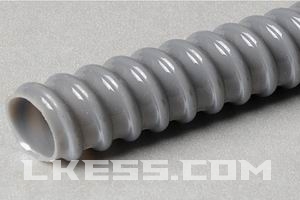

塑筋软管713
特性：可塑性PVC管，带螺旋硬骨塑筋，内表面完全平滑,外表面有凸起纹理，更轻且更柔软，具有良好的机械性能比；耐低温、抗氧化、耐磨损、抗扭曲、耐大多数化学品；
产品规格：
|
内径 |
外径 |
过压 |
真空 |
弯曲半径 |
尺寸长度 |
更多的生产长度 |
订购代码 |
|
in / mm |
mm |
bar |
bar |
mm |
m |
m |
|
|
- / 20 |
27 |
1.370 |
0.260 |
17.0 |
10 |
15 |
LKE713-0020 |
|
1 / 25 |
32 |
1.110 |
0.250 |
19.5 |
10 |
15 |
LKE713-0025 |
|
- / 30 |
38 |
0.930 |
0.235 |
23.0 |
10 |
15 |
LKE713-0030 |
|
1.25 / 32 |
40 |
0.875 |
0.230 |
24.0 |
10 |
15 |
LKE713-0032 |
|
1.36 / 35 |
43 |
0.800 |
0.225 |
25.5 |
10 |
15 |
LKE713-0035 |
|
1.5 / 38 |
46 |
0.740 |
0.215 |
27.0 |
10 |
15 |
LKE713-0038 |
|
- / 40 |
48 |
0.705 |
0.210 |
28.0 |
10 |
15 |
LKE713-0040 |
|
- / 42 |
50 |
0.670 |
0.205 |
29.0 |
10 |
15 |
LKE713-0042 |
|
1.75 / 44-45 |
53 |
0.630 |
0.195 |
30.5 |
10 |
15 |
LKE713-0045 |
|
2 / 50 |
58 |
0.565 |
0.180 |
33.0 |
10 15 |
- |
LKE713-0050 |
|
- / 55 |
63 |
0.515 |
0.160 |
35.5 |
10 |
15 |
LKE713-0055 |
|
2.36 / 60 |
68 |
0.475 |
0.145 |
38.0 |
10 15 |
- |
LKE713-0060 |
|
2.5 / 65 |
73 |
0.440 |
0.125 |
40.5 |
10 |
15 |
LKE713-0065 |
|
- / 70 |
79 |
0.410 |
0.105 |
44.0 |
10 |
15 |
LKE713-0070 |
|
3 / 75 |
84 |
0.380 |
0.095 |
46.5 |
10 |
15 |
LKE713-0075 |
|
- / 80 |
89 |
0.360 |
0.090 |
49.0 |
10 |
15 |
LKE713-0080 |
|
3.5 / 89-90 |
99 |
0.320 |
0.075 |
54.0 |
10 |
15 |
LKE713-0090 |
|
4 / 100 |
109 |
0.285 |
0.060 |
59.0 |
10 15 |
20 |
LKE713-0100 |
|
- / 105 |
114 |
0.275 |
0.060 |
61.5 |
10 |
15 |
LKE713-0105 |
|
- / 110 |
119 |
0.260 |
0.055 |
64.0 |
10 |
15 |
LKE713-0110 |
|
4.5 / 114-115 |
124 |
0.250 |
0.055 |
66.5 |
10 |
15 |
LKE713-0115 |
|
4.72 / 120 |
129 |
0.240 |
0.050 |
69.0 |
10 |
15 |
LKE713-0120 |
|
5 / 125 |
134 |
0.230 |
0.040 |
71.5 |
10 |
15 |
LKE713-0125 |
|
- / 130 |
139 |
0.220 |
0.040 |
74.0 |
10 |
15 |
LKE713-0130 |
|
5.5 / 140 |
149 |
0.205 |
0.040 |
79.0 |
10 |
15 |
LKE713-0140 |
|
6 / 150 |
159 |
0.190 |
0.040 |
84.0 |
10 |
15 |
LKE713-0150 |
|
6.3 / 160 |
169 |
0.180 |
0.035 |
89.0 |
10 |
15 20 |
LKE713-0160 |
|
6.5 / 165 |
174 |
0.175 |
0.035 |
91.5 |
- |
10 15 |
LKE713-0165 |
|
- / 170 |
179 |
0.170 |
0.030 |
94.0 |
- |
10 15 |
LKE713-0170 |
|
- / 175 |
184 |
0.165 |
0.030 |
96.5 |
- |
10 15 |
LKE713-0175 |
|
7 / 178-180 |
189 |
0.160 |
0.030 |
99.0 |
10 |
15 |
LKE713-0180 |
|
8 / 200 |
209 |
0.145 |
0.030 |
109.0 |
10 15 |
- |
LKE713-0200 |
|
- / 225 |
234 |
0.130 |
0.020 |
121.5 |
10 |
15 |
LKE713-0225 |
|
9 / 228-229 |
237 |
0.125 |
0.018 |
123.0 |
- |
10 15 |
LKE713-0228 |
|
- / 250 |
259 |
0.115 |
0.010 |
134.0 |
10 |
- |
LKE713-0250 |
|
10 / 254 |
263 |
0.110 |
0.010 |
136.0 |
- |
10 |
LKE713-0254 |
|
- / 275 |
284 |
0.105 |
0.010 |
146.5 |
- |
10 |
LKE713-0275 |
|
11 / 280 |
289 |
0.100 |
0.010 |
149.0 |
10 |
- |
LKE713-0280 |
|
- / 300 |
309 |
0.095 |
0.010 |
159.0 |
10 |
- |
LKE713-0300 |
|
12 / 305 |
314 |
0.093 |
0.010 |
161.5 |
- |
10 |
LKE713-0305 |
|
- / 315 |
324 |
0.090 |
0.010 |
166.5 |
- |
10 |
LKE713-0315 |
|
- / 325 |
334 |
0.085 |
0.010 |
171.5 |
- |
10 |
LKE713-0325 |
|
13 / 330 |
339 |
0.084 |
0.010 |
174.0 |
- |
10 |
LKE713-0330 |
|
- / 350 |
359 |
0.080 |
0.005 |
184.0 |
10 |
- |
LKE713-0350 |
|
14 / 356 |
365 |
0.078 |
0.005 |
187.1 |
- |
10 |
LKE713-0356 |
|
- / 400 |
410 |
0.070 |
0.005 |
210.0 |
10 |
- |
LKE713-0400 |
|
16 / 405-406 |
416 |
0.069 |
0.005 |
213.0 |
- |
10 |
LKE713-0406 |
|
- / 450 |
460 |
0.065 |
0.005 |
235.0 |
- |
10 |
LKE713-0450 |
|
18 / 457 |
467 |
0.063 |
0.005 |
238.5 |
- |
10 |
LKE713-0457 |
|
- / 500 |
510 |
0.055 |
0.005 |
260.0 |
10 |
- |
LKE713-0500 |
|
20 / 508 |
518 |
0.053 |
0.005 |
264.0 |
- |
10 |
LKE713-0508 |
其他规格均可定制！
