T型波纹管三通接头-LKE00205
应用：用于管路三通分支连接，广泛适用于需要分流、合流的管道系统。
属性：防护等级IP65，耐候性强，耐腐蚀耐老化，使用寿命长，黑色标准款，支持多规格多尺寸按需定制。

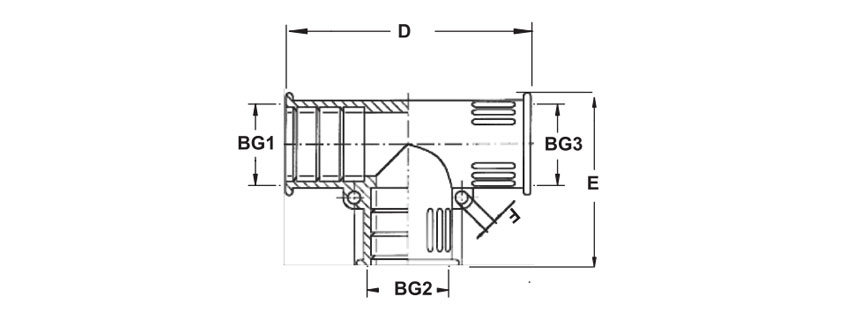

结构：T型三通波纹管设计，一路进两路出(或两路合一路)，波纹管柔性段吸收振动与位移，连接紧凑可靠，安装便捷。
材质：TPE橡胶原料制成。
温度范围：-40℃至+100℃。
支持非标定制：尺寸、颜色、材质及特殊要求均可按需定制!
|
|
订购代码 |
对应软管 |
适配软管 |
适配软管 |
适配软管 |
固定孔 |
长度 |
宽度 |
包装 |
|
|
|
Item No. |
Conduit item no |
Outer dia. |
Outer dia. |
Outer dia. |
Fix hole |
length |
Width |
Std.Pkg |
|
|
|
|
BG1×BG2/BG2 |
BG2 |
BG3 |
BG1 |
F |
H |
E |
PCS |
|
|
|
LKE-205-3×10.0B |
3×10.0 |
BG-07 |
BG-07 |
BG-07 |
4 |
46.5 |
32.5 |
10PCS |
|
|
|
LKE-205-3×13.0B |
3×13.0 |
BG-10 |
BG-10 |
BG-10 |
4 |
54.5 |
36.5 |
10PCS |
|
|
|
LKE-205-3×15.8B |
3×15.8 |
BG-12 |
BG-12 |
BG-12 |
4 |
68 |
46 |
10PCS |
|
|
|
LKE-205-3×18.5B |
3×18.5 |
BG-15 |
BG-15 |
BG-15 |
4 |
81 |
54.5 |
10PCS |
|
|
|
LKE-205-3×21.2B |
3×21.2 |
BG-17 |
BG-17 |
BG-17 |
4 |
82.5 |
62.5 |
10PCS |
|
|
|
LKE-205-3×28.5B |
3×28.5 |
BG-23 |
BG-23 |
BG-23 |
4 |
81 |
54.5 |
10PCS |
|
|
|
LKE-205-3×34.5B |
3×34.5 |
BG-29 |
BG-29 |
BG-29 |
4 |
82.5 |
62.5 |
10PCS |
|
|
|
LKE-205-3×42.5B |
3×42.5 |
BG-36 |
BG-36 |
BG-36 |
4 |
82.5 |
62.5 |
10PCS |
|
|
|
LKE-205-2×15.8/21.2B |
2×15.8/21.2 |
BG-12 |
BG-12 |
BG-17 |
4 |
75 |
52 |
10PCS |
|
|
|
LKE-205-2×21.2/28.5B |
2×21.2/28.5 |
BG-17 |
BG-17 |
BG-23 |
4 |
68 |
60.5 |
10PCS |
|
|
|
LKE-205-2×28.5/34.5B |
2×28.5/34.5 |
BG-23 |
BG-23 |
BG-29 |
4 |
86 |
77 |
10PCS |
|
|
|
LKE-205-2×34.5/42.5B |
2×34.5/42.5 |
BG-29 |
BG-29 |
BG-36 |
4 |
98.5 |
89 |
10PCS |
|
