波纹管防水接头-LKE00209
应用：用于管路系统的防水密封连接，广泛适用于需要防水、防尘、耐酸碱油脂的恶劣工况。
属性：夹紧圈与密封件特殊设计，装配省时省力，夹紧软管范围大、抗拉力强，防水防尘防盐、耐酸碱酒精油脂，黑色标准款，特殊颜色可定制，通过CE、ROHS、SGS认证。

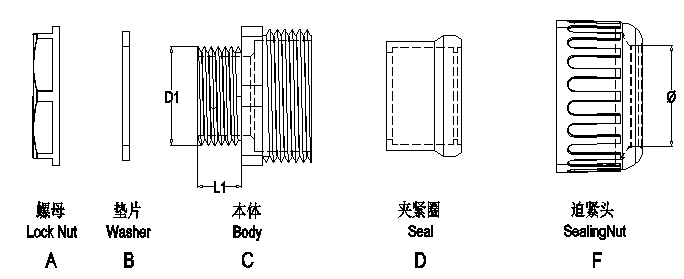

结构：本体穿入机板后螺母扭紧固定，软管穿过迫紧头套入夹紧圈到底，扭紧迫紧头即可锁紧，IP68级防水护等级，安装牢固拆装便捷。
材质：A/C/F部采用PA66尼龙，B部采用聚甲醛POM，D部采用丁晴橡胶，防火等级UL94V-2。
温度范围：-40℃至+150℃。
支持非标定制：尺寸、颜色、材质及特殊要求均可按需定制!
公制螺纹
|
|
订购代码 |
螺牙规格 |
适配软管 |
螺纹外径 |
螺纹长度 |
包装 |
|
|
|
|
Item No |
|
|
(MM) |
(MM) |
(个/包) |
|
|
|
|
LKE-209-M12-10.0 |
M12x1.5 |
AD10.0 |
12 |
9 |
50 |
|
|
|
|
LKE-209-M16-13.0 |
M16X1.5 |
AD13.0 |
16 |
15 |
50 |
|
|
|
|
LKE-209-M16-18.5 |
|
AD15.8 |
16 |
15 |
50 |
|
|
|
|
LKE-209-M16-18.5 |
|
AD18.5 |
16 |
15 |
50 |
|
|
|
|
LKE-209-M20-15.8 |
M20x1.5 |
AD15.8 |
20 |
15 |
50 |
|
|
|
|
LKE-209-M20-18.5 |
|
AD18.5 |
20 |
15 |
50 |
|
|
|
|
LKE-209-M20-21.2 |
|
AD21.2 |
20 |
15 |
50 |
|
|
|
|
LKE-209-M22-15.8 |
M22x1.5 |
AD15.8 |
22 |
15 |
50 |
|
|
|
|
LKE-209-M22-18.5 |
|
AD18.5 |
22 |
15 |
50 |
|
|
|
|
LKE-209-M25-21.2 |
M25x1.5 |
AD21.2 |
25 |
15 |
50 |
|
|
|
|
LKE-209-M25-25.0 |
|
AD25.0 |
25 |
15 |
50 |
|
|
|
|
LKE-209-M25-28.5 |
|
AD28.5 |
25 |
15 |
50 |
|
|
|
|
LKE-209-M32-34.5 |
M32x1.5 |
AD34.5 |
32 |
15 |
20 |
|
|
|
|
LKE-209-M40-42.5 |
M40×1.5 |
AD42.5 |
40 |
15 |
10 |
|
|
|
|
LKE-209-M50-42.5 |
M50×1.5 |
AD42.5 |
50 |
15 |
10 |
|
|
|
|
LKE-209-M50-54.5 |
|
AD54.5 |
50 |
22 |
10 |
|
|
|
|
LKE-209-M63-54.5 |
M63X1.5 |
AD54.5 |
63 |
25 |
10 |
|
|
|
|
|
|
|
|
|
|
|
|
德制螺纹
|
|
订购代码 |
螺牙规格 |
适配软管 |
螺纹外径 |
螺纹长度 |
包装 |
|
|
|
Item No |
|
|
(MM) |
(MM) |
(个/包) |
|
|
|
LKE-209-PG7-10.0 |
PG7 |
AD10.0 |
12.5 |
9 |
50 |
|
|
|
LKE-209-PG9-10.0 |
PG9 |
AD10.0 |
15.2 |
9 |
50 |
|
|
|
LKE-209-PG9-13.0 |
|
AD13.0 |
15.2 |
9 |
50 |
|
|
|
LKE-209-PG11-13.0 |
PG11 |
AD13.0 |
18.6 |
10 |
50 |
|
|
|
LKE-209-PG11-15.8 |
|
AD15.8 |
18.6 |
10 |
50 |
|
|
|
LKE-209-PG11-18.5 |
|
AD18.5 |
18.6 |
10 |
50 |
|
|
|
LKE-209-PG13.5-15.8 |
PG13.5 |
AD15.8 |
20.4 |
10 |
50 |
|
|
|
LKE-209-PG13.5-18.5 |
|
AD18.5 |
20.4 |
10 |
50 |
|
|
|
LKE-209-PG16-15.8 |
PG16 |
AD15.8 |
22.5 |
10.8 |
50 |
|
|
|
LKE-209-PG16-18.5 |
|
AD18.5 |
22.5 |
10.8 |
50 |
|
|
|
LKE-209-PG16-21.2 |
|
AD21.2 |
22.5 |
13 |
50 |
|
|
|
LKE-209-PG21-21.2 |
PG21 |
AD21.2 |
28.3 |
13 |
50 |
|
|
|
LKE-209-PG21-25.0 |
|
AD25.0 |
28.3 |
13 |
50 |
|
|
|
LKE-209-PG21-28.5 |
|
AD28.5 |
28.3 |
13 |
50 |
|
|
|
LKE-209-PG29-34.5 |
PG29 |
AD34.5 |
37 |
13 |
20 |
|
|
|
LKE-209-PG36-42.5 |
PG36 |
AD42.5 |
47 |
13 |
10 |
|
|
|
LKE-209-PG48-54.5 |
PG48 |
AD54.5 |
59.3 |
16 |
10 |
|
|
|
|
|
|
|
|
|
|
英制螺纹
|
|
订购代码 |
螺牙规格 |
适配软管 |
螺纹外径 |
螺纹长度 |
包装 |
|
|
|
Item NO |
|
|
(MM) |
(MM) |
(个/包) |
|
|
|
LKE-209-PF3/8-13.0 |
G(PF)3/8 |
AD13.0 |
16.6 |
15 |
50 |
|
|
|
LKE-209-PF3/4-15.8 |
|
AD15.8 |
16.6 |
15 |
50 |
|
|
|
LKE-209-PF3/4-18.5 |
|
AD18.5 |
16.6 |
15 |
50 |
|
|
|
LKE-209-PF1/2-15.8 |
G(PF)1/2 |
AD15.8 |
20.9 |
15 |
50 |
|
|
|
LKE-209-PF1/2-18.5 |
|
AD18.5 |
20.9 |
15 |
50 |
|
|
|
LKE-209-PF1/2-21.2 |
|
AD21.2 |
20.9 |
15 |
50 |
|
|
|
LKE-209-PF3/4-21.2 |
G(PF)_3/4 |
21.2 |
26.4 |
15 |
50 |
|
|
|
LKE-209-PF3/4-25.0 |
|
AD25.0 |
26.4 |
15 |
50 |
|
|
|
LKE-209-PF3/4-28.5 |
|
AD28.5 |
26.4 |
15 |
50 |
|
|
|
LKE-209-PF1-34.5 |
G(PF)1 |
AD34.5 |
33.2 |
15 |
20 |
|
|
|
LKE-209-PF1 1/4-42.5 |
G(PF)1/4 |
AD42.5 |
41.9 |
15 |
10 |
|
|
|
LKE-209-PF11/2-42.5 |
G(PF)1 1/2 |
AD42.5 |
48 |
15 |
10 |
|
|
|
LKE-209-PF11/2-54.5 |
|
AD54.5 |
48 |
15 |
10 |
|
|
|
|
|
|
|
|
|
|
